| مكان المنشأ | الصين |
| اسم العلامة التجارية | SDLG |
| إصدار الشهادات | ISO9001 |
| رقم الموديل | L936h |

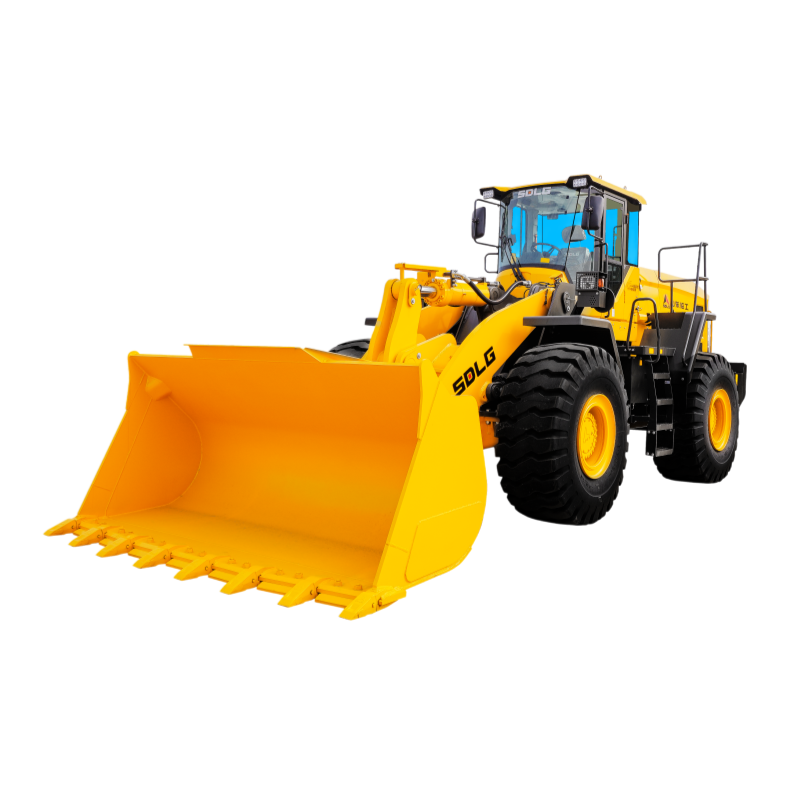

SDLG Lingong Large Wheel Loader 7t Capacity 4 M³ Bucket L970 Pay Loader
Product Advantages
* High Efficiency
Weichai high efficiency engine, Tier T3.
The energy-saving low-speed engine fits well with the high-efficiency and realizes a comprehensive energy saving of more than 10%.
High market share and high reliability; Good adaptability; Low maintenance cost.
* High Reliability
It is applied with the HTE220B fixed-shaft electro-hydraulic shift transmission of four forward gears and four reverse gears, which features high transmission efficiency.
It has the function of power cut-off and neutral gear lock-up, enabling stable and impact-free gearshift and high reliability.
The KD gearshift function configured reduces the operating efforts and enhances the flexibility and efficiency.
* High Quality
Hydraulic system components use internationally renowned suppliers;
Large flow, high pressure, smooth composite action.
Lightweight operation, high efficiency and reliable performance.
* Convenience
Automotive-grade mold-formed steel hood with high structural strength and elegant appearance.
The double gas spring opens the hood and is easy to operate.
Large opening side door maintenance is more convenient.
| Rated Load (kg) | 7000 |
| Length×Width×Height (mm) | 9020×3200×3510 |
| Emission Standard | GB 20891-2014 (stage 3 ) |
| Max.Tractive Force (kN) | 200 |
| Max.Breakout Force (kN) | ≥215 |
| Fuel Tank Capacity (L) | 350 |
| Standard Bucket Capacity (m³) | 4.0 |
| Operating Weight (kg) | 21300 |
| Rated Power (kW) | 199 |
| Engine Model | Weichai Tier T3 |
Details Images
